Cygnus Instruments 4 MK4 Multiple Echo Ultrasonic Digital Thickness Gauge

Greatly Reduce Inspection Time and Cost
None

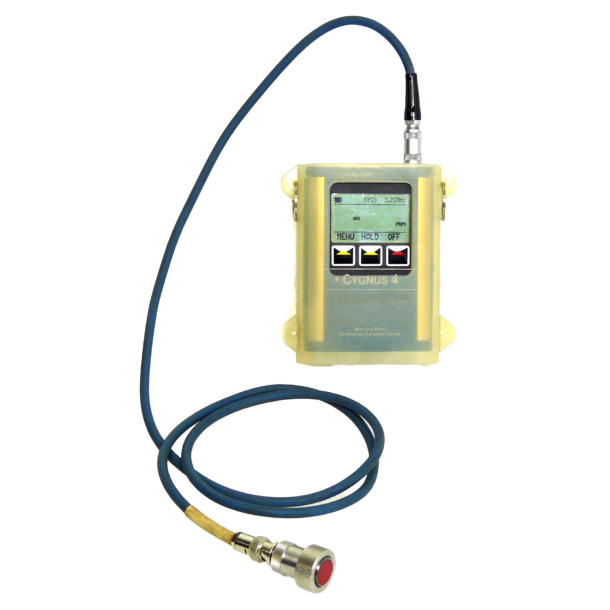

Cygnus Instruments 4 MK4 Multiple Echo Ultrasonic Digital Thickness Gauge
Cygnus Instruments 4 MK4 Multiple Echo Ultrasonic Digital Thickness Gauge
Cygnus Instruments 4 MK4 Multiple Echo Ultrasonic Digital Thickness Gauge
In stock
£75.00
INL462
Next day delivery Price match Unlimited support
  • Multiple echo digital thickness gauge
  • Large, clear LCD display making reading results easy
  • Reduces cost as protective coatings do not need to be removed
  • 5MHz probe available for thinner materials, (down to 1 mm)
  • Dimensions: h.115mm w.85mm d.25mm,
  • Weight: 275g
Inlec accepts all major debit and credit cards

Details

The Cygnus 4 MK4 Multiple Echo Ultrasonic Digital Thickness Gauge has been designed to measure the remaining thickness on corroded and coated structures. It has been specifically designed as a marine survey tool and helps to greatly reduce inspection time and cost.

It's light and simple to use and comes with a silicone protective case making it durable perfect for quick onsite inspection.

The kit is ideal for use on flat surfaces or pipes and the multiple echo probes means measurements can be made through thick coatings taking only the reading of the meal itself.

The Cygnus has been designed specifically for checking the thickness of metal on : ships, storage tanks, pipelines, bridges, street lighting columns, LPG vessels, road transport tanks, offshore platforms, piers, jetties and piles, processing vessels, cranes and much more.

The kit is supplied with: probe, membrane, 15mm steel test block, membrane couplant, ultrasonic couplant, pouch, silicone sleeve, manual, hard carry case.

Technical specification

  • Battery powered
  • Battery life 30 hours
  • PRF 602Hz
  • Coatings up to 6mm thick
  • Coatings up to 20mm in deep coat mode
  • Measurement range 2 1/4 MHz probe, 3mm to 250mm
  • Multiple echo digital thickness gauge
  • Large, clear LCD display making reading results easy
  • Reduces cost as protective coatings do not need to be removed
  • 5MHz probe available for thinner materials, (down to 1 mm)
  • Dimensions: h.115mm w.85mm d.25mm,
  • Weight: 275g
