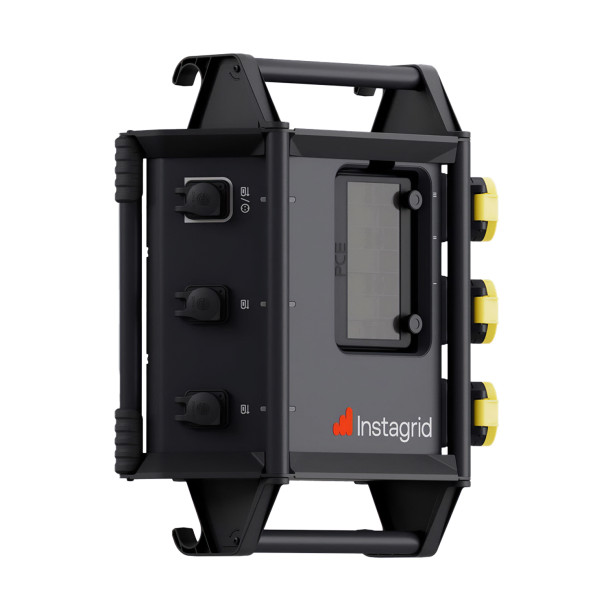

Instagrid Link (110V) Power Distribution System

Expand Your Power Options with The Instagrid Link, Powerful System For Combining Multiple Instagrids, Creating Continuous Power

System clamps directly onto the outer bars of an Intsagrid unit, create a portable power station for indoor or outdoor use with no fumes or emissions. Manage the status of your units with the instagrid app, showing battery life and vital stats.

Smart Power Distribution System with;

• Island Mode
• Continuous power source
• Power three devices with RCD Protection

Technical Specification

• Nominal voltage output 230 V AC / 50 Hz
• Residual circuit device 3 x 1P+N RCD type A, 30 mA
• Nominal output current 16 A
• Circuit breaker 1P 16 A (tripping characteristic C)
• Nominal output power 3600 W
• Switching time < 20 ms

• Weight 4.5kg
• Dimensions 400 x 310 x 140 mm
• Optimised for directly clamping onto Instagrid 110V units
•


Datasheet

User Guide
