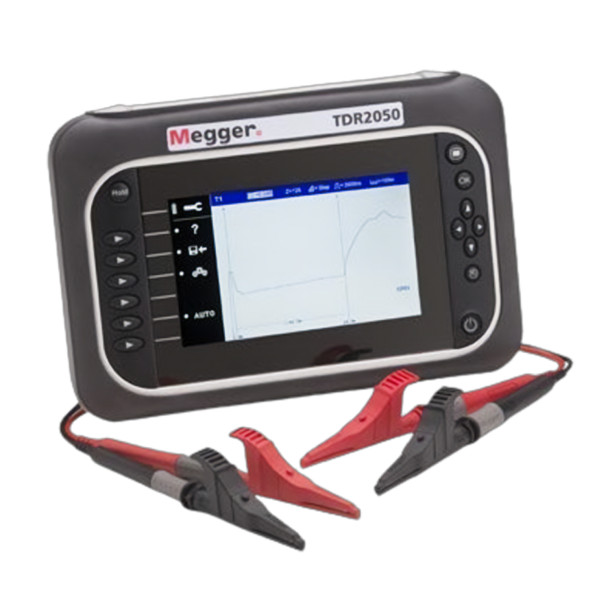

Megger TDR2050 TDR Cable Fault Locator

Megger TDR2050 TDR Cable Fault Locator

600 V CAT IV Allows Use On Energised Systems Read More
Minimum hire period: 1 week
Hire now
Delivery and Collection from: £44.00
Get a quote
  • Description
  • Specifications
  • Delivery & Returns

The TDR 2050 Is Unique In The TDR Series As It Includes A Built-In 600V Input Protection Filter Which Enables Use On Energised Systems

Designed for use on all metallic paired cables the TDR 2050 features dual channel and high resolution fault location,a large LCD colour display with the ability to customise the display based on your environment for better visibility. The TDR 2050 is specifically suited for use on energised systems, this differentiates this model from other TDR's which do not offer this.

Additional Manufacturer Specifications
  • Backlit graphics colour LCD (800x480)
  • Adjustable display contrast
  • Resolution to 0.1 m
  • AutoFind guide to potential fault location
  • 100 trace on board memory
  • USB connection to PC allowing upload and download of traces
  • “TraceXpert” PC software analysis tool
  • For use on power circuits to 600 V CAT IV
  • Power blocking filter built-in
  • Environmental protection to IP54
  • Selectable output impedance
  • TDR2000/3 and 2010: 25, 50, 75, 100, 125 ohm + AUTO.
  • TDR2050: 25, 50, 75, 100, 140 ohm + AUTO.
  • 2ns pulse for near end fault location
  • AUTO option selecting gain and pulse for each range
  • AUTO option matches output impedance to cable
  • Display distance in metres or feet
  • Li-ion rechargeable battery (12 hours typical life)

Product code: INL2050
Depot: STK
  • LCD Display with Customisable Colour Schemes
  • 600 V CAT IV Input Protection filter built in
  • Step and Pulse TDR selections
  • Distance Dependant Gain
  • Dual trace and dual cursor capabilities
  • Weight - 1.7Kg
  • Dimensions - 290mm x 190mm x 55mm
