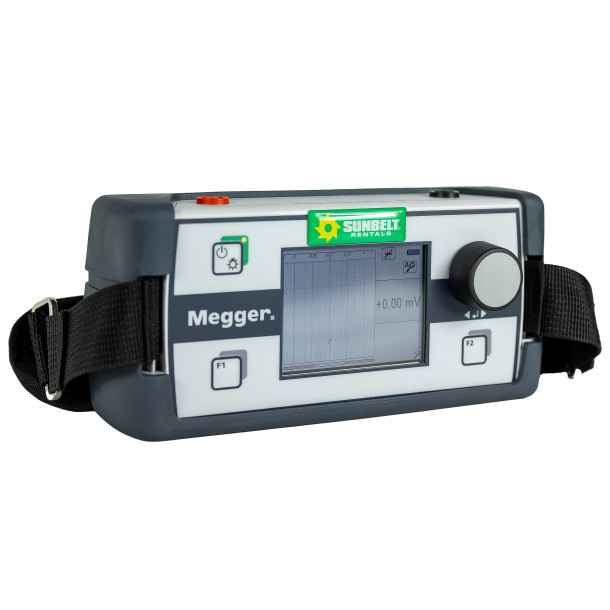

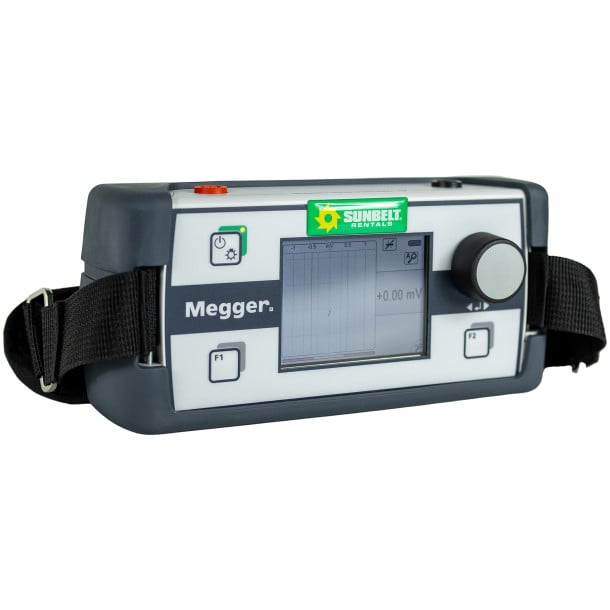

Megger ESG NT2 Earth Fault Locator

The ESG NT pinpoints a sheath fault with high accuracy, and state-of-the-art technology allows for very easy use with a bright, sun-readable TFT colour display. The integrated noise suppression enables use in high activity areas such as railways, industrial plants and high resistive soil environments, enabling fast and accurate fault detection.

A bar graph is shown on the display, similar to the analogue display or by a history display, which shows the deflections of the last 7 pulses.

• The display always shows zero, due to the fully automatic calibration.
• The integrated noise suppression eliminates all influences from DC, Railway currents, industrial plants, and high-resistive soil environments.
• Ground step voltage potential is measured 2 earth rods and the direction towards the fault is shown on the display.

Key Specifications

• Automatic adaptation to voltage level
• Automatic filtration of interfering signals
• Automatic zero calibration, no adjustment necessary
• History mode
• High contrast colour display.
• Display: High contrast colour TFT with 320 X 240 Pixels
• Sensitivity: 5µV … 200V
• Suppression of disturbances: 50/60 Hz, 16 2/3 Hz, KKS, DC
• Zero adjustment: Automatic
• Power supply: 6 x LR6 Alkali-Mangan

• Dimensions of receiver: 65 x 225 x 100 mm
• Weight of receiver: 0.9 kg (including batteries)
• Length of earth rods: 1 m (dividable and isolated)
• Weight earth rods: 0.8kg each
• Length test leads: 2m
