Megger MFM 10 with Megger ESG NT Sheath Fault Location Kit

The intuitive menu-driven operation of the MFM 10 with fully automatic measurement and evaluation, enables the testing of cable sheaths as well as the pre-location and pinpointing of cable faults in the most efficient way possible.

This kit combines the power of the MFM 10 with the pinpoint accuracy of the Megger ESG NT. This kit is purposefully designed in order to give you the best tools available to locate and pinpoint faults in cable sheaths on-site.

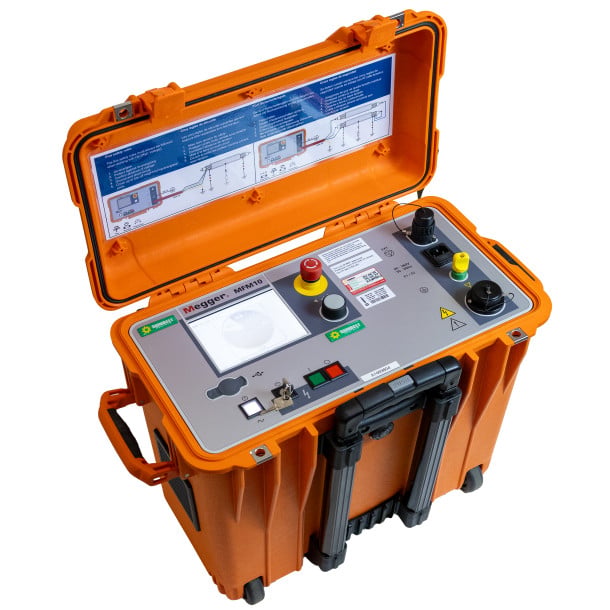

Megger MFM 10

A user-friendly interface lets you use either the rotary encoder or the built-in touchscreen interface to access different testing modes and navigate the menu systems. The unit itself is housed in a rugged exterior casing, with well-designed handles on either side of the case, allowing easy transport to and from your site.

• The very powerful 10 kV DC source with positive and negative polarity allows the testing of HV cables.
• The bipolar function ensures the elimination of external thermo-electric and galvanic influences.
• A multi-section facility permits the entry of cable segments with different parameters.
• The available high current of up to 750 mA also enables the burning of difficult cable faults.
• It has an integrated protocolling feature in combination with the approved Easy-prot Software for an easy and reliable test generation.
• This item comes complete with the Seba ESG NT Locator.

Applications Include:

• Locating cable sheath faults

• Comes complete with Seba ESG NT Locator
• Testing, pre-location and pinpointing of sheath faults
• Voltage up to ±10 kV DC - High current of up to 750 mA
• Only one HV connection cable
• Automatic measurement and protocolling
• Dimensions - 500 x 457 x 305 mm
• Weight 25 - kg

Datasheet

User Guide
