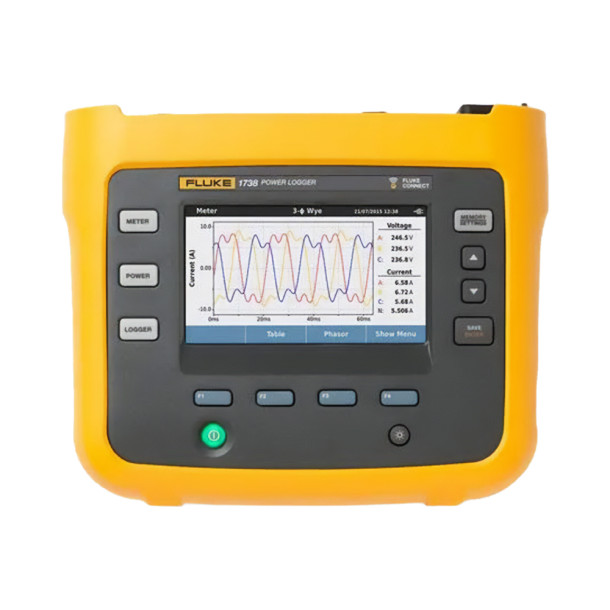

Fluke 1738 Three-Phase Energy Logger

Ultimate Solution for Three-Phase Comprehensive Energy Monitoring In Industrial And Commercial Settings

Can simultaneously log rms voltage, rms current, voltage and current events, voltage and current THD, voltage and current harmonics up to the 50th harmonic, active power, reactive power, power factor, active energy, and reactive energy.

Key Features

• Automatically capture and log voltage, current, power, harmonics and associated power quality values
• 600 V CAT IV/1000 V CAT III rated
• Measure all three phases and neutral using the included 4 flexible current probes, ensuring a comprehensive overview of your electrical system.

Data Logging and Reporting

Extensive logging capabilities with the ability to store over 20 separate logging sessions directly on the instrument. All measured values are automatically logged, allowing for real-time analysis and preventing the loss of crucial measurement trends. Identify and address power quality issues effectively by capturing dips, swells, and inrush currents.

Standards Compliance

• Harmonics IEC 61000-4-7: Class 1
• IEEE 519 (short time harmonics)
• Power quality IEC 61000-4-30 Class S, IEC62586-1 (PQI-S device)
• Power IEEE 1459
• Power quality compliance EN50160 (for measured parameters)

Companion Software From Fluke

Fluke have software specifically designed for the 1730,1732,1734,1736,1738,1742,1746,1748,1773,1775 and 1777 models - you can download the software via the link to the Fluke website below.

Download Fluke Energy Analyze Plus Here

• Measures all three phases and neutral
• Reporting, Data logging and Event snapshots
• Weight 1.1Kgs
• Download Fluke Energy Analyze Plus Here

Datasheet

User Guide
