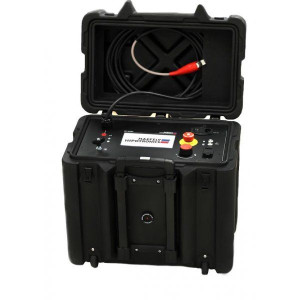

Haefely Hipotronics 880PL-DC Hipot Tester 80kV

Haefely Hipotronics 880PL-DC Hipot Tester 80kV

Read More
£300.00
Minimum hire period: 1 week
Please call us

Why choose Sunbelt Rentals UK as your hire partner?

We offer next day delivery, and we arrange the collection when you off-hire. Find out more
Our stock is always fully calibrated, using our internal calibration department. Find out more
Benefit from unlimited technical support when hiring test equipment from Sunbelt UK. Find out more
  • Description
  • Specifications
  • Delivery & Returns

This product is out of stock, We now recommend the Neumann Elektrotechnik KPG 80kV HV DC Test Set as a suitable alternative.



A modern solution for testing the insulation strength of electrical apparatus is the 880PL-DC. The state of the art digital interface and extensive safety features make the 880PL-DC simple to operate, accurate results are given and safety of the user is guaranteed under all circumstances.
This device features the most accurate kilovolt readings regardless of the load current. Measurements of voltage are directly taken at the output of the high voltage transformer, while current is measurement at the return leg to ensure the highest level of accuracy.


The 7” colour touch screen display makes results easy to read and recorded results can be transferred easily via USB 2.0

Environmental


  • Operating Temperature 14…122° F (-10 .. 50°C)
  • Storage Temperature -4…158° F (-20 .. 70°C)
  • Humidity 5…95% non-condensing

Inputs

  • Power 90-264VAC, 45-65Hz, 900VA
Outputs


  • Voltage 100-80,000 VDC
  • Current 10mA
  • Polarity Negative Output, Positive Ground
  • DUT Insulation Resistance 10 kΩ…8 GΩ
Safety Features



  • Emergency Stop
  • Visual Warning Indicators
  • External Interlock
  • Audible Warning Indicator
  • Interlock Hand-switch
  • External Warning Lamp (optional)
  • Interlock Foot Pedal (optional)
  • Battery Backup for Display Metering
  • Display 7” TFT , 800 x 480, Color Touch Screen, High Brightness (Adjustable)
  • Interfaces USB 2.0 for Memory Stick Data





Product code: INL826
  • Dimensions 19.45" L x 13.7" W x 20" H 49.4 x 34.8 x 50.7 cm
  • Weight 57 lbs (25.8 kg)
  • 7” colour touch screen
  • results can be transferred easily via USB 2.0
  • accurate kilovolt readings regardless of the load current.
