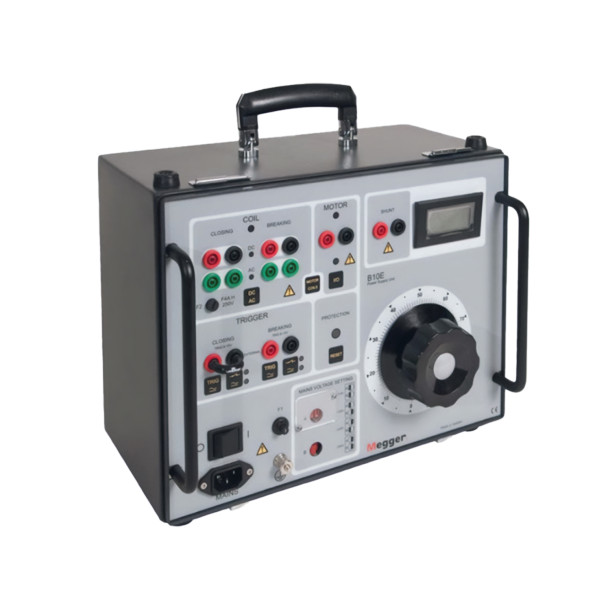

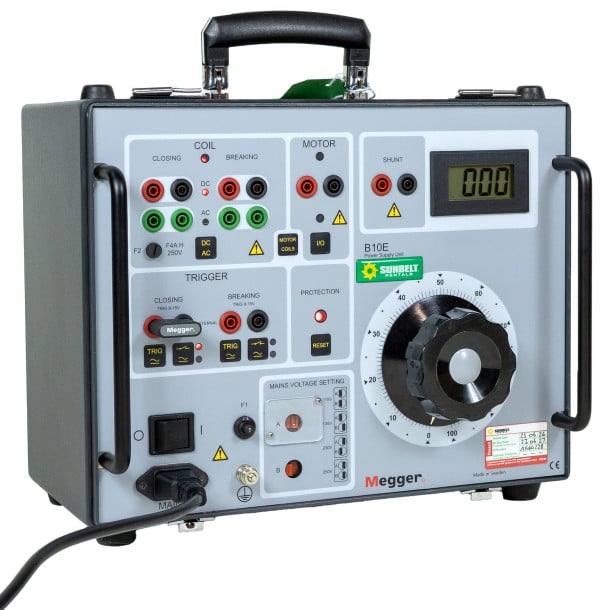

Megger B10E AC/DC Power Supply

Suitable for Reduced Voltage Test
new
Megger B10E AC/DC Power Supply
In stock
£300.00
INL1045
Estimated shipping from £30.00
Next day delivery Price match Unlimited support
  • Reliable and stable power supply for circuit breaker testing
  • Continuously variable 24-250 V AC or DC output
  • Separate outputs for close coil, trip coil and spring charging motor voltage
  • Direct triggering for minimum trip voltage testing
  • Dimensions -  350 x 270 x 220 mm
  • Weight - 29kg with Transit case and accessories
Inlec accepts all major debit and credit cards

Details

A variable DC voltage is needed to test a circuit breaker. Substation batteries should not be used since this entails considerable risk for testing personnel, testing equipment and also for the equipment being tested. The best way to ascertain whether or not solenoids and protective mechanisms are sluggish or set improperly is to perform a test at minimum tripping voltage. The minimum trip voltage test is described in a number of international and national standards such as IEC 62271-100, ANSI C37.09 etc.


B10E DC Voltage Power Supply can be used to test breaker coils in this manner. It provides a ripple-free variable DC voltage that can easily accommodate a high, variable load. Ripple free power supply.

  • Reliable and stable power supply for circuit breaker testing
  • Continuously variable 24-250 V AC or DC output
  • Separate outputs for close coil, trip coil and spring charging motor voltage
  • Direct triggering for minimum trip voltage testing
  • Dimensions -  350 x 270 x 220 mm
  • Weight - 29kg with Transit case and accessories
