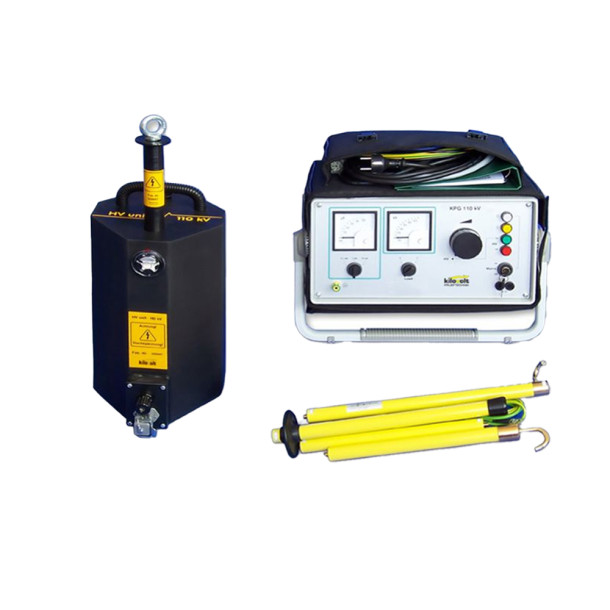

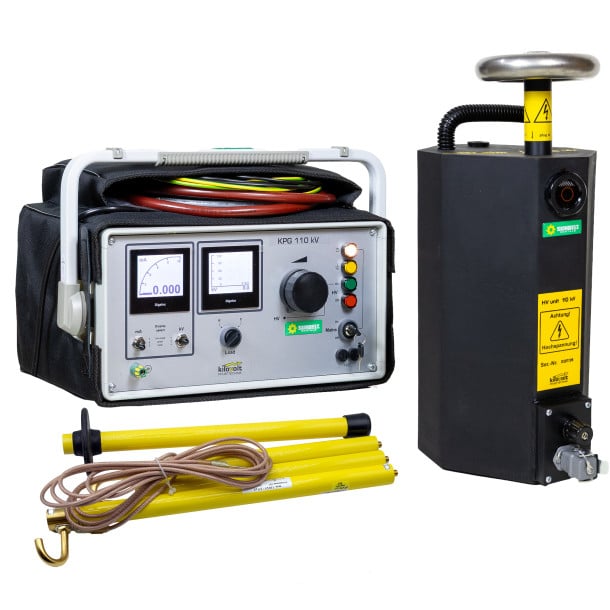

Kilovolt Prueftechnik KPG 110 kV HV DC Test Set

The 110kV DC test set its useful for the testing of newly installed cables and cable joints before commissioning. Testing and re-commissioning of cable systems or high-voltage systems after maintenance and repair. Regular preventive cable testing.

The Control Unit Is Equipped With A Digital Ammeter For Measuring Leakage Current, Scaled 0.1mA / 1mA / 10mA.

The combined weight of the control unit and the transformer is 32Kg. It has a protective ground circuit which prevents energisation if the instrument in not safely grounded.

• Ideal For Testing 33kV cable (Core to Core).

Applications Include

• Testing new installations of cables and cable joints before commissioning
• Testing at the recommissioning stage where cable systems or high voltage systems have been repaired or in a state of maintenance
• Regular preventative cable testing
•  Routine testing of electrical equipment

• Easy operation
• Robust construction
• Suitable for 33KV cable
• Compact & easily portable due to excellent modular design
• Dimensions: h.380mm w.500mm d.280mm,
• Weight: 22.5kg (32Kg Combined with Transformer)

Datasheet

User Guide
