Omicron CT Analyser

Omicron CT Analyser

Comprehensive Testing, Protection and Metering of Current Transformers Read More
Minimum hire period: 1 week
Hire now
Delivery and Collection from: £55.00
Get a quote
  • Description
  • Specifications
  • Delivery & Returns

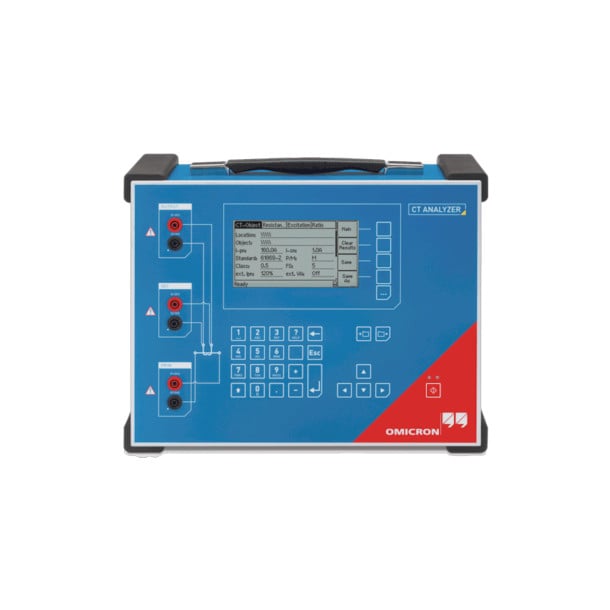

The Omicron CT Analyser Has Become A Recognised Product For The Comprehensive Testing Of Protection and Metering Current Transformers to IEEE and IEC standards. Single and Multi Ratio CT's Can Be Tested In Situation In Power Grid Systems

The CT analyser is also used by manufacturers of GIS, transformers and Current Transformers to test and develop their own systems and standards.

It offers a diverse range of measurements including:

  • CT winding resistance, excitation and saturation
  • CT Ratio and phase angle accuracy wrt nominal and operational burden for current
  • CT residual magnetism
  • Burden impedance
  • ALS and FS (direct and indirect)

Product code: INL574
Depot: STK
  • Highly accurate CT verification
  • Test all types of single and multi-ratio current transformers
  • Can be used to perfom VT ratio test
  • Test reports can be saved and transferred to a PC
  • Size (W x H x D): 360mm x 285mm x 145mm
  • Weight: 8Kg
