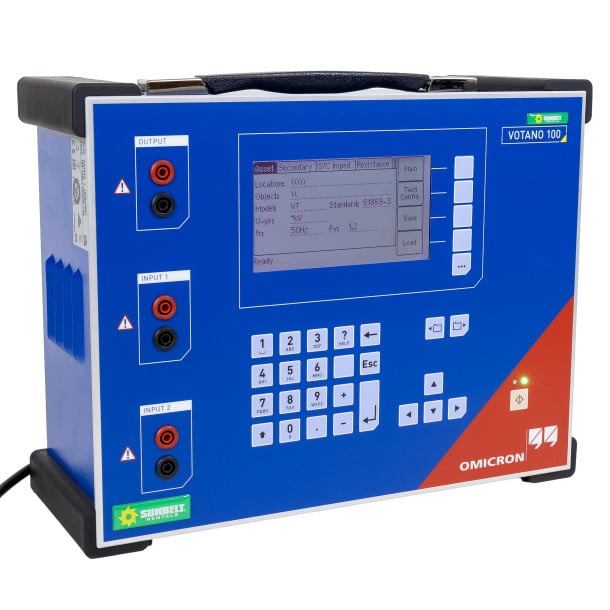

Omicron VOTANO 100

Designed For Instrument Transformer Testing, the VOTANO 100 Is Ideal For Testing, Calibration and Assessment

The VOTANO 100 is capable of conducts a wide range of tests on potential transformers (VTs & CVTs) to determine their performance and condition, alongside ratio, phase, polarity and capacitive ratio testing

Lightweight and robust, an electrical engineer's toolbox for testing inductive and capacitive voltage transformers

• Injects low test signals into the secondary side of a VT/CVT
• Determines a VT’s/CVT’s equivalent circuit parameters
• Identifies all relevant VT/CVT performance parameters
• Displays all relevant VT/CVT parameters and their accuracy at different currents and burdens and with loaded and unloaded secondary windings
• Evaluates the VT/CVT according to the selected standard

Applications Include:

• Testing of Inductive voltage transformers (VTs) and capacitive voltage transformers (CVTs)
• Also suitable for calibration and class verification

Included in This Kit

• 1 × VOTANO 100
• 1 × VBO2
• All cables and accessories (Connection leads, Power Leads, Clamps, high-voltage cables, Grounding Cables, SAB1 Safety Box)
• The entire list of accessories and kit included can be found in the datasheet under ordering no. P0000747
• Yellow Hardcase/transport case with handle and wheels

For voltage transformer testing (VT/CVT)

• Check the electrical performance of VTs and CVTs
• Check the condition of VTs and CVTs
• Basic condition assessment for CVTs
• Tests such as ratio, phase, polarity, capacitive ratio

For voltage transformer accuracy verification and calibration (VT/CVT)

• Verify accuracy class according to IEC, IEEE
• Test of VTs/CVTs up to rated voltages and voltage factors up to 1.9
• Class assessment
• Accuracy classes up to 0.1 for VTs and 0.2 for CVTs

Datasheet

User Guide
