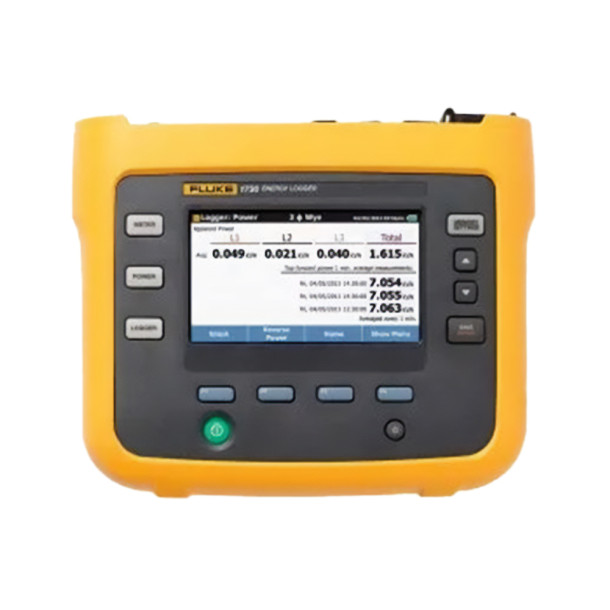

Fluke 1730 Three-Phase Energy Logger | Power Quality Analyser

Fluke 1730 Three-Phase Energy Logger | Power Quality Analyser

Designed for Load Studies and Analysis of Energy Wastage Read More
€145.00
Minimum hire period: 1 week
Quantity
Hire now
Delivery and Collection from: €66.00
Get a quote
  • Description
  • Specifications
  • Delivery & Returns

The Fluke 1730 Energy Logger Is Designed For Energy Measurement and Cost Reduction In Your Facility

The product layout with interactive touch screen display and intuitive navigation, make the device easy to use. The instrument is supplied with Fluke software which is designed to help you record and analyse your results. The Fluke Energy Analyse Plus software can be viewed & downloaded from Fluke's official website here.


  • The 1730 power supply can be removed in order to make the device narrower, allowing the 1730 to fit in confined spaces.
  • The two USB ports make data download and device configuration simple and straightforward. One port is for downloading to a memory stick and the second port is for initial setup. In addition to this, fluke software is also available and provides a range of additional functionality.

    Technical Specifications

  • Resolution: 16-bit synchronous sampling
  • Sampling frequency: 5120 Hz
  • Input signal frequency: 50/60 Hz (42.5 to 69 Hz)
  • Circuit types: 1-φ, 1-φ IT, Split phase, 3-φ delta, 3-φ wye, 3-φ wye IT, 3-φ wye balanced, 3-φ
  • Aron/Blondel (2-element delta), 3-φ delta open leg, Currents only (load studies)
  • THD: THD for voltage and current is calculated using 25 harmonics
  • Averaging period: (User selectable) 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min
  • Demand interval: (User selectable) 5 min, 10 min, 15 min, 20 min, 30 min
  • Data storage: Internal flash memory (not user replaceable);
  • Memory size: Typical 20 logging sessions of 10 weeks with 10-minute intervals

Product code: INL726
Depot: STK
  • Enclosure: IP50 in accordance with EN60529
  • Safety: IEC 61010-1: Overvoltage CAT IV, Measurement 1000 V CAT III/600 V CAT IV, Pollution Degree 2
  • Accuracy: 1730 ± (1 % of reading + 0.02 % of range)
  • Measurement category: 1000 V CAT III/600 V CAT IV
  • Weight: 1.1 kg
  • Dimensions: 19.8 cm x 16.7 cm x 5.5 cm (7.8 in x 6.6 in x 2.2 in)
